Industrial Engineering &
Metal Fabrication Capabilities

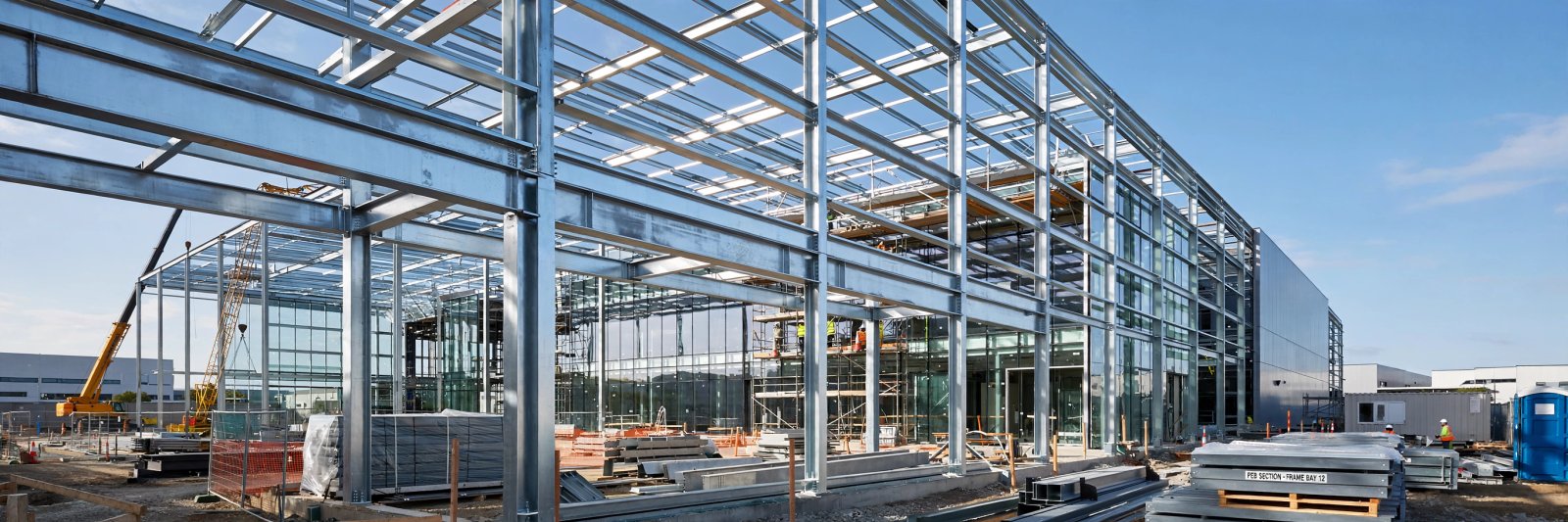

Full-spectrum turnkey contract manufacturing: heavy structural framing, high-tonnage pressure vessels, automated PEB systems, and multi-axis CNC profile cutting adhering to AWS D1.1 and ASME Sec-VIII directives.
LIVE SHOP FLOOR
15T CRANE GANTRIES
Continuous SAW Welding Line
Core Production Processes & Workstations
Select any fabrication discipline below to inspect certified machinery specs, material grades, and non-destructive testing (NDT) workflows.
Every lot carries physical heat traceability stamps connecting raw mill certs to UT/MPI reports signed by Level-II inspectors.
Heavy Structural Steel Fabrication
Integrated automated SAW box beam and heavy plate girder line.
Machinery & Equipment Specifications

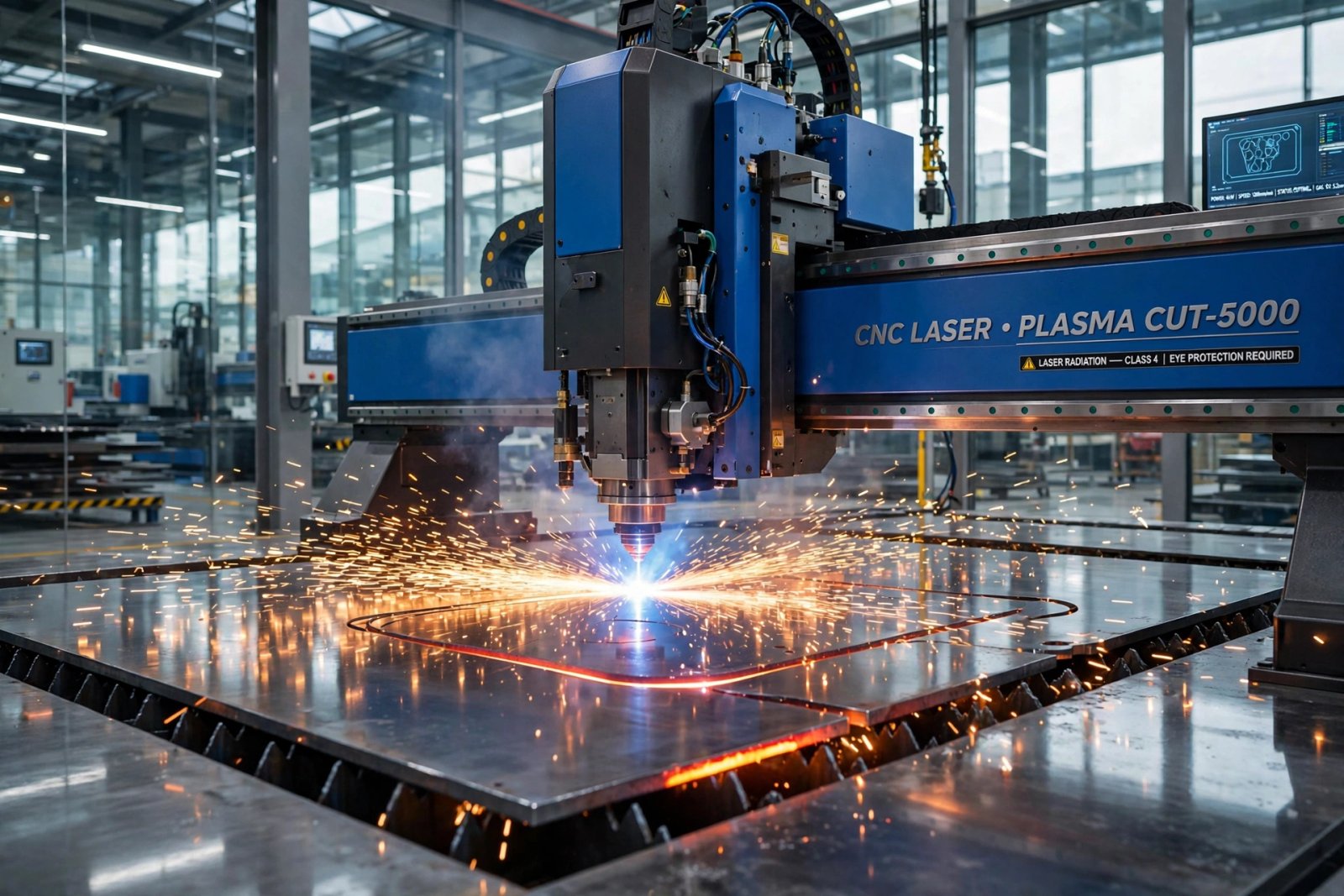

PRIMARY CUTTING / PROFILE
3,000 × 12,000 mm dual-shuttle bed with rotational pipe cutting chuck up to Ø450mm.
FORMING & BENDING
4,000 mm width multi-axis crowning control capable of 20mm plate folding with zero springback error.
WELDING AUTOMATION
Tandem wire 1,200 Amp boom with flux recovery unit for continuous girder web-to-flange welding.
Certified Material Capabilities
Thickness: 1.5mm to 100mm plate stock ready in shop warehouse.
Passivated weld seams, food-grade/chemical finishing standards.
Boiler quality & atmospheric weathering steels with heat treatment.
High-precision AC-TIG pulsated weldments for marine structures.
Quality Assurance & NDT Matrix
Internal lamination & full penetration weld seam void detection.
Electromagnetic yoke detection of micro surface/sub-surface fractures.
Direct chemical composition & Charpy V-notch mechanical traceability.
Calibrated digital chart recorder hold tests with safety relief log.
Tolerance & Machinery Comparison Matrix
| Manufacturing Process | Machinery Asset Model | Operational Bed / Span | Max Material Gauge | Achievable Tolerance | Standard Spec Code |
|---|---|---|---|---|---|
| CNC Fiber Laser Cutting | Hans Laser 12kW G4020 | 3,000 × 12,000 mm | MS: 40mm | SS: 32mm | ±0.05 mm | ISO 9013-1 |
| Heavy CNC Press Brake | Ermaksan 400T × 4100 | 4,100 mm Width | 25mm Plate Full Length | ±0.25 mm / ±0.5° | DIN 6930 |
| Plate Rolling 4-Roll | Davi MCA 3040 Hydraulic | 3,100 mm Cylinder Shell | 50mm Cold Roll | ±1.0 mm Roundness | ASME Sec VIII D1 |
| Submerged Arc Welding | Lincoln Power Wave AC/DC | 6m Boom × 40m Rail | 80mm Fillet / Butt Joint | Zero Porosity / 100% UT | AWS D1.1 |

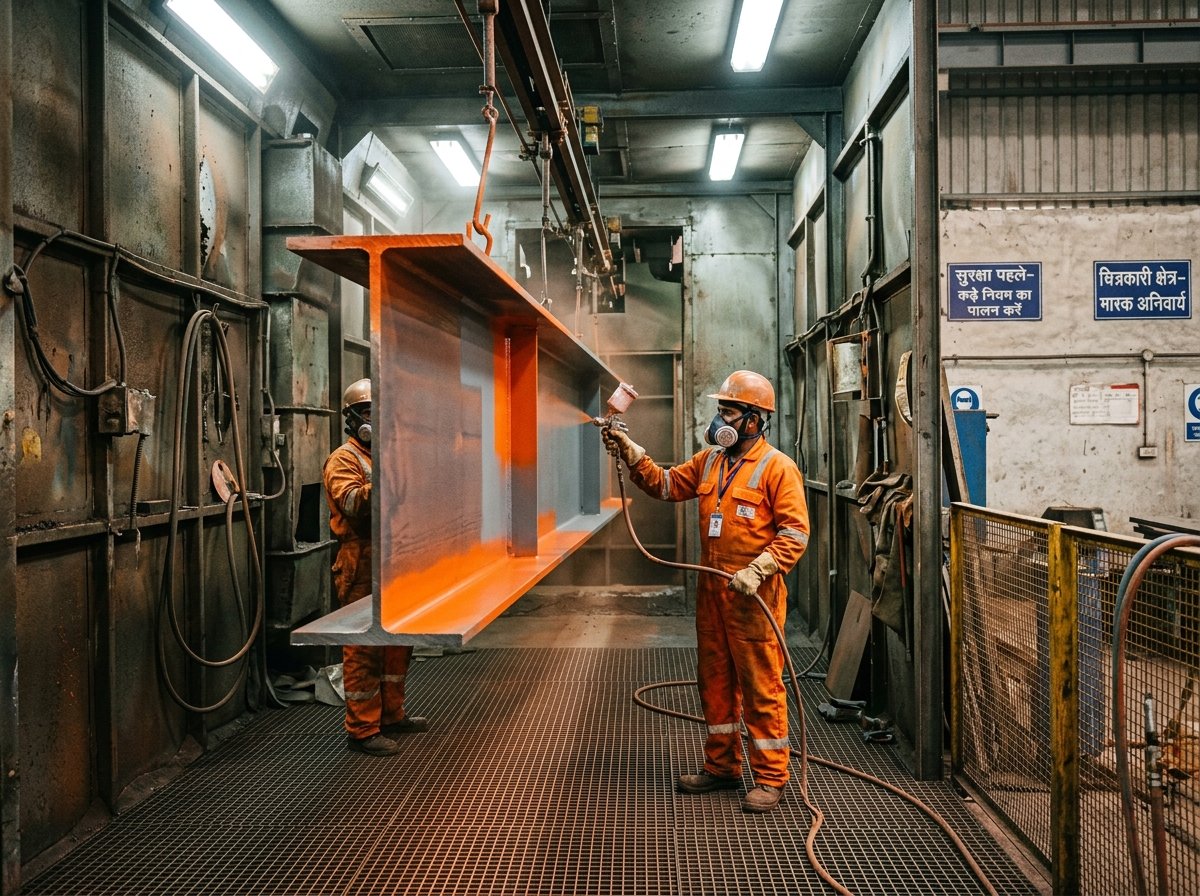

| Grit Blasting & Painting | Airblast Closed Enclosure | 8m × 6m × 24m Chamber | All Profiles | DFT 50μm ± 5μm | SSPC-SP 10 / NACE 2 |
HAVE ENGINEERING DRAWINGS?
GET A CERTIFIED QUOTE IN 24 HOURS.
Upload your 2D/3D CAD or STEP files. Our senior structural estimating engineers will deliver a comprehensive bill of materials (BOM), tonnage breakdown, and fabrication schedule.
